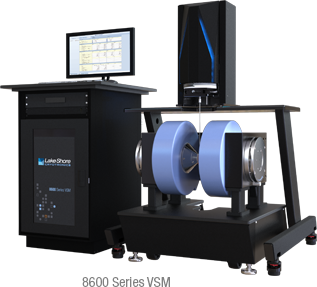

Lake Shore vibrating sample magnetometers

  8604 8607
Magnet 4 in 7 in
Maximum field at room temperature 2.76 T 3.26 T
Maximum field at variable temperature LHe/LN2 cryostat 1.55 T 2.31 T
Single stage 2.03 T 2.62 T
Oven 1.55 T 2.31 T
Maximum field with vector Future
Sensitivity at room temperature 0.1 s/pt 150 nemu
1 s/pt 60 nemu
10 s/pt 25 nemu
Sensitivity with SSVT option 10 s/pt 120 nemu
Sensitivity with oven or cryostat option 10 s/pt 500 nemu
Sensitivity with vector 10 s/pt Future
Repeatability ±1%
Accuracy ±1%
Stability ±0.05%/day
Field setting resolution 1 mOe
Maximum sample size 1 in (10 mm × 10 mm typical)
Vector sense coils Future
Sample rotation Yes (standard)
Magnetoresistance Future
CCR option Future
Variable temperature LHe cryostat 4.2 K (base), 5.5 K to 450 K (control)
LN2 cryostat 77.6 K (base), 85 K to 450 K (control)
Single stage 78 K (base), 100 K to 950 K (control)
Oven 303 K to 1273 K
