Temperature controllers

Monitor & control temperatures from <20 mK to over 1,500 K. Choose from variety of sensor inputs, sensor excitation ranges, display features, and interfaces. Temperature controller overview...

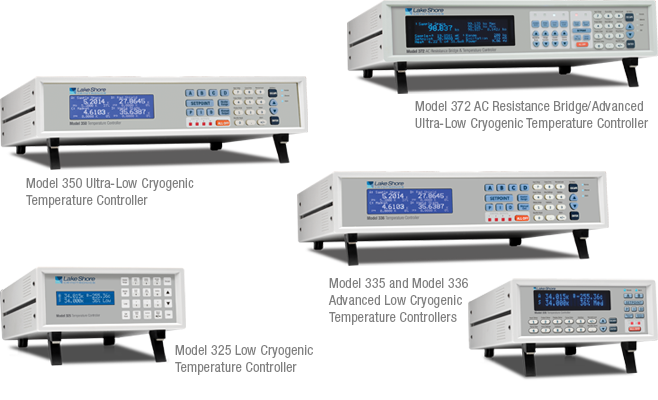

Model 372

Model 350

Model 336

Model 335

Model 325

  Standard number of sensor inputs (optional)Temperature range (with appropriate sensors) Standard sensors Optional sensors Number of outputs Total heater power (max)
Model 372 2 (17) <20 mK to 420 K Cernox®, ruthenium oxide (Rox™), germanium, other NTC RTDs 3 10 W + 1 W + 1 W
Model 350 4 (8) 100 mK to 1500 K Cernox®, ruthenium oxide (Rox™), platinum RTDs, other NTC RTDs Silicon diodes, thermocouple wire, capacitance 4 75 W + 1 W + 1 W + 1 W
Model 336 4 300 mK to 1500 K Cernox®, silicon diodes, other NTC RTDs, PTD RTDs Thermocouple wire, capacitance 4 100 W + 50 W
Model 335 2 300 mK to 1500 K Cernox®, silicon diodes, other NTC RTDs, PTD RTDs Thermocouple wire 2 75 W + 1 W or 50 W + 25 W
Model 325 2 1.2 K to 1500 K Cernox®, silicon diodes, other NTC RTDs, PTD RTDs Thermocouple wire 2 25 W + 2 W
