Capacitance

Capacitance

Germanium temperature sensor

CS capacitance sensors are ideally suited for use as cryogenic temperature control sensors in strong magnetic fields because they exhibit virtually no magnetic field dependence. Displacement current is not affected by magnetic fields. Consequently, temperature control fluctuations are kept to a minimum when sweeping magnetic field or when changing field values under constant temperature operation.

Because small variations in the capacitance/temperature curves occur upon thermal cycling, calibrations must be transferred to the capacitor from another sensor after cooling for the best accuracy. It is recommended that temperature in zero field be measured with another temperature sensor and that the capacitance sensor be employed as a control element only.

Capacitance features
  • Virtually no magnetic field-induced errors
  • Capable of mK control stability in the presence of strong magnetic fields
  • Monotonic in C versus T to nearly room temperature

Capacitance product overview...


List Grid

Set Descending Direction

1 Item(s)

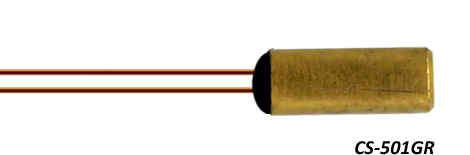

  1. 501GR capacitance sensor
    $507.00
    Capacitance temperature sensor Learn More
    Product Code:
    • CS-501GR
